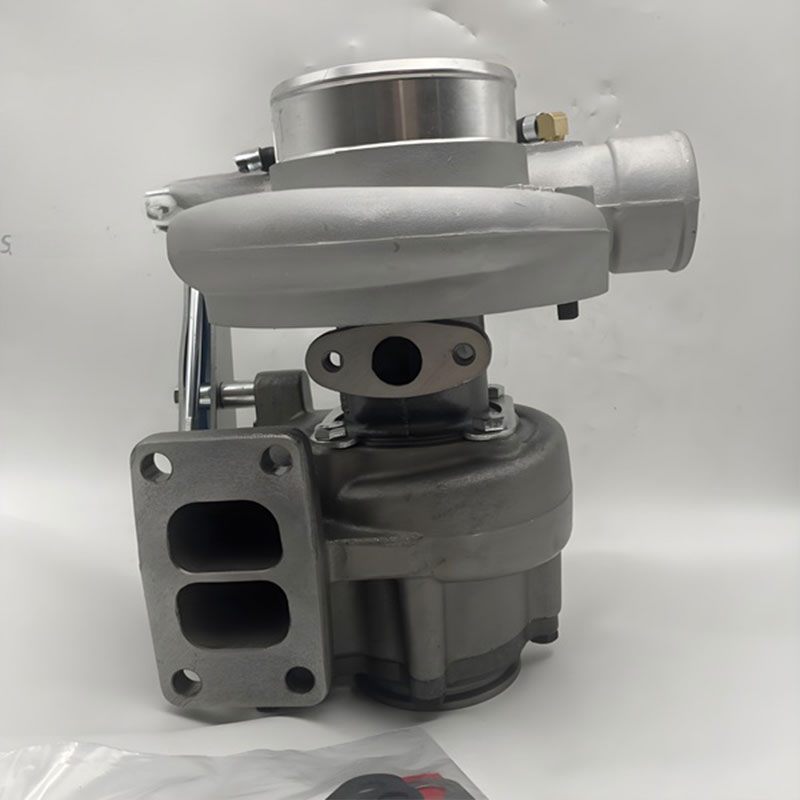

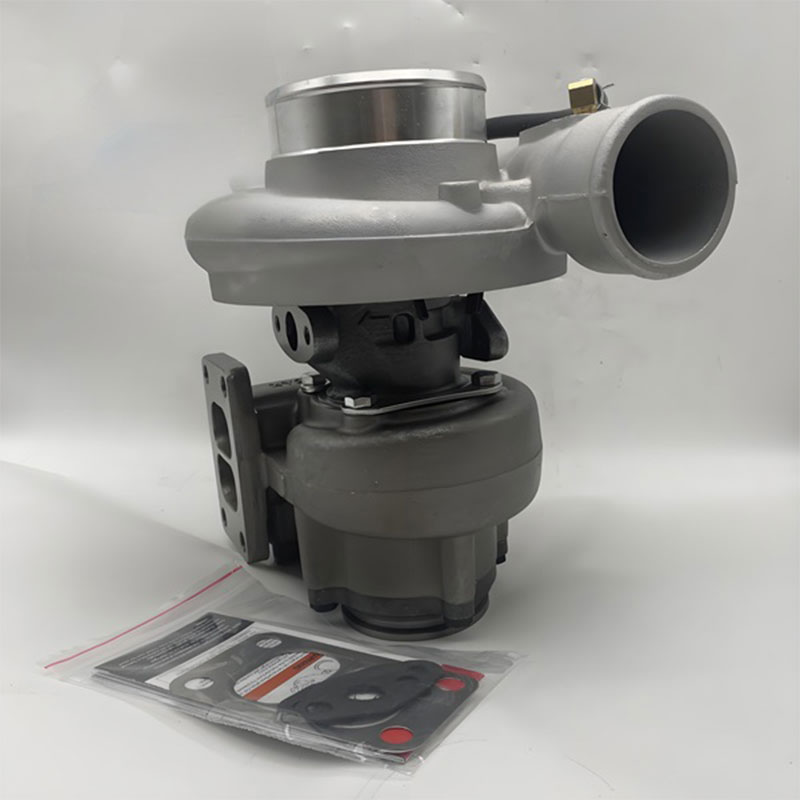

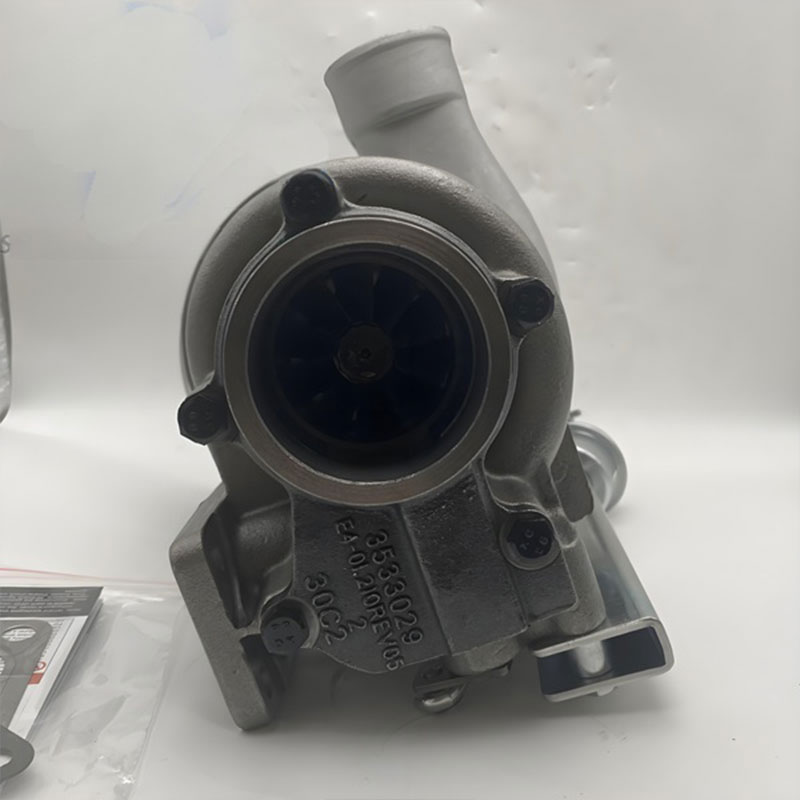

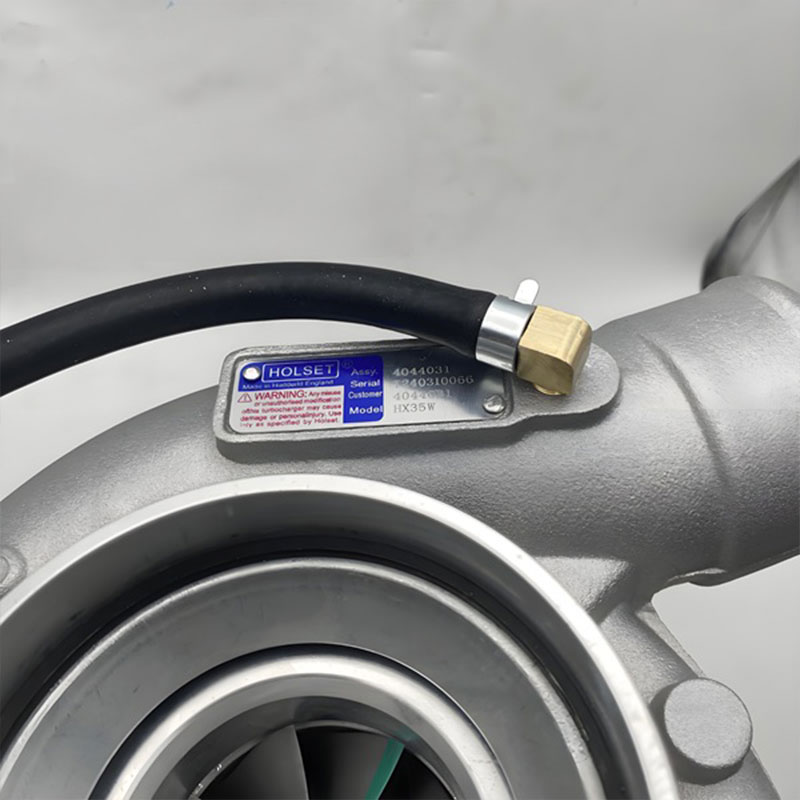

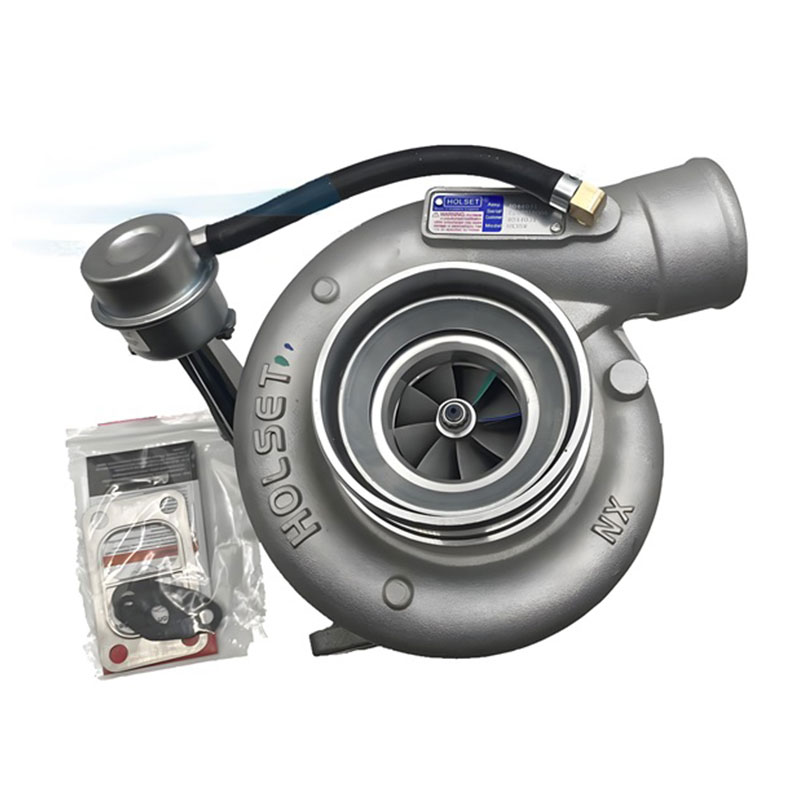

Iloli i-HX35 Turbocharger
U-Shengkunda ungumhlinzeki weTurbocharger wekhwalithi yaseShayina ochwepheshe. Le yunithi yokungenisa ngempoqo ephoqelelayo iklanyelwe ukukhulisa ingcindezi eningi yezinjini zikadizili eziyi-4BT nezingu-6BT, kuthuthukise ukusebenza kahle komlilo kanye nokulethwa kwamandla. Ngokusebenzisa i-high-silicon molybdenum izindlu kanye nama-alloys amelana nokushisa kwe-K18, le Hx35 Turbocharger ye-Cummins Truck Engines iqinisekisa amazinga azinzile kanye nokuthembeka komshini kwesikhathi eside okunganikeza ukushintshwa okuthembekile kwemishini yezokuthutha nemikhumbi yezimboni.
Thumela Uphenyo
Incazelo Yomkhiqizo
I-Turbocharger yeloli i-HX35 ka-Shengkunda, ekhonjwe ngengxenye yezinombolo ezifana ne-4044031 kanye ne-504129032, iyingxenye ekhiqizwe ngokunemba eyakhelwe ukuzinza kokujikeleza kwesivinini esikhulu. Njenge-Hx35 Cummins Truck 4bt Diesel Turbocharger ezinikele, yakhelwe ukuphatha ingcindezi eshisayo yemijikelezo kadizili yezimboni.
Le Engine Parts Hx35 Turbocharger ye-Heavy Duty Construction Machinery Truck inikeza isisombululo sokungeniswa esilingana ngqo, siqinisekisa ukuthi wonke ama-flange akhuphukayo nemigqa kawoyela ihambisana nokucaciswa kwenjini kwasekuqaleni. Ihambisana ngokugcwele nezinjini zochungechunge lwe-Cummins, Case, kanye ne-Iveco NEF, enikeza isixhumi esibonakalayo esijwayelekile esivumela ukuhlanganiswa ngokushesha ngaphandle kokulungiswa.
Ukugqamisa Umkhiqizo
● Ukuhambisana Kwenjini Ebanzi
Iloli i-HX35 Turbocharger idizayinelwe ngamaphethini e-Flange e-T3/T4 ajwayelekile ukuze ilingane nezinjini ezihlukahlukene ze-Cummins 4BT/6BT kanye ne-Case/Iveco, iqinisekisa ukufana okunembile kwemikhiqizo yemishini esindayo eminingi.
● High-Temperature Alloy Construction
I-turbine housing yenziwe nge-silicon molybdenum ephezulu ukuvimbela ukuqhekeka, kuyilapho isondo le-turbine lisebenzisa ingxubevange ye-K18 ukugcina ubuqotho besakhiwo emazingeni okushisa angaphezu kuka-800°C.
● I-I-Precision Balanced Rotating Assembly
Yonke i-shaft yangaphakathi kanye ne-impeller ibhalansiswa ngesivinini esiphezulu ukuze iqede ukudlidliza, inciphise ukuguga kwe-bearing futhi iqinisekise ukuthi i-turbo ifinyelela i-RPM yayo eqokiwe ngaphandle kwe-lag mechanical.
● Ukucindezela Okuningi Okulungiselelwe
I-wastegate yangaphakathi kanye ne-compressor geometry ishuniwe ukuze inikeze impendulo esheshayo, iqinisekisa ukuthi injini igcina i-torque ephezulu ngesikhathi somthwalo osindayo noma ukhuphuka umqansi.
● Ukufakwa Okuqondile Kwezicaciso ze-OEM
Zonke izilinganiso, okuhlanganisa izintuba zokuphakela uwoyela kanye nezindawo zokukhipha umoya, zifanelana nezindinganiso ze-4044031 kanye ne-504129032, okuvumela ukufakwa kwebhawodi okujwayelekile ngamathimba okulungisa.Isicelo SomkhiqizoLe turbocharger iyingxenye eyinhloko yezinjini ze-Cummins 4BT kanye ne-6BT ezisetshenziswa emalolini nasemishinini yokwakha esindayo. Isetshenziswa kabanzi kumishini yezimboni ye-Case kanye ne-Iveco, kanye namaloli e-Shacman kanye ne-HOWO lapho ukucindezela okungaguquki kwenjini kuyadingeka ekusebenzeni komsebenzi osindayo.
Ukupakisha
1. Ikesi lezinkuni lokuthutha olwandle
Ezokuthutha zasolwandle amabanga amade, iTruck HX35 Turbocharger ivikelwe ngamakesi okhuni aqinisiwe. Leli ngaphandle eliqinile linikeza isivikelo sesakhiwo esiphezulu ekucindezelweni kwezitaki eziphakeme futhi livimbela ukugqwala komoya kasawoti noma umthelela obonakalayo kushafu ye-turbine phakathi nokuhamba olwandle.
2. Ikhathoni lokuhamba emoyeni noma lokubonisa
Uma ithunyelwa ngezithunywa zomoya noma ezihamba phambili, i-Hx35 Cummins Truck 4bt Diesel Turbocharger ipakishwe kumabhokisi kathayela anezendlalelo eziningi. Lokhu kupakishwa kunciphisa isisindo sempahla ngenkathi kugcinwa ubuqotho besakhiwo sezingxenye ngesikhathi sokuphatha ngokushesha.
Imininingwane Yezobuchwepheshe
- Impahla Yezindlu:I-High-Silicon Molybdenum Cast Iron.
- Isondo le-Turbine:Ingxubevange ye-K18 Engangeni Ukushisa.
-Inombolo Yengxenye Yezikhombo:4044031, 504129032, 3592121.
-Uhlobo Lokupholisa:I-Standard Oil Lubrication and Cooling.
FAQ
Q: Ngingakhetha kanjani i-turbocharger efanele elingana nenjini yami?
I: Ukuze uqinisekise ukuhambisana, sicela unikeze inombolo yoqobo egxivizwe ku-compressor housing yakho, noma wabelane ngokwakhiwa kwemoto yakho, imodeli, unyaka, kanye nekhodi yenjini. Izithombe ezicacile zeyunithi yakho yamanje nazo ziwusizo ekuqinisekiseni.
Q: Ingakanani isikhathi esimisiwe sokulethwa?
A: Izikhathi zokuthumela ziyahlukahluka ngendlela: I-Express ithatha cishe izinsuku ezingu-3-7, i-Air Freight izinsuku ezingu-7-15, kanye ne-Sea Shipping phakathi kwezinsuku ezingu-20-45. Singamukela izinhlelo eziphuthumayo zokuthutha uma sizicela.
Q: Ingabe uhlinzeka ngezinguqulo ezithuthukisiwe zokusebenza ze-HX35?
IMP: Yebo, sinikeza izinketho ezahlukene zokuthuthukisa ukusebenza ezihambisana nemigomo ethile yamandla. Sicela uxhumane nethimba lethu lezobuchwepheshe ngemininingwane yakho yemodeli yamanje kanye nemigomo oyifunayo okukhiphayo ukuze uthole isincomo sochwepheshe.
Ipharamitha Yomkhiqizo (Ukucaciswa)
| Le yindawo ka Origin | China | Iwaranti | 1 Unyaka |
| Ukuhlola okuphumayo kwevidiyo | Kuhlinzekiwe | Umbiko Wokuhlolwa Kwemishini | Akutholakali |
| Isicelo | Izingxenye Zenjini | Ingxenye yegama | I-Turbocharger |
| Faka isicelo kokuthi | I-HX35W | Inombolo yengxenye | 4044031 504129032 |
| I-MOQ | 1 Ucezu | Ikhwalithi | Ikhwalithi ephezulu |
| Isimo | 100% Okusha sha | Isikhathi sokuthumela | Izinsuku ezingu-1-3 |
| Ukupakisha | Ikhathoni | Iwaranti | Kuyaxoxiswa |
Izingxenye ezijwayelekile zenjini ye-BFCEC ISF3.8
| 145536F | vala, O INDANDATHO |
| 2830444F | I-GASKET, I-ExhaUST MANIFOLD |
| 2830977F | vala, O INDANDATHO |
| 3089016F | SCREW, HEXFLANGEHEADCAP |
| 3090126F | I-SEAL, ORING |
| 3093930F | I-SCREW, I-HEX FLANGE HEAD CAP |
| 3678603F | vala, O INDANDATHO |
| 3819900F | I-GASKET, TURBOCHARGER |
| 3867646F | vala, O INDANDATHO |
| 3900589F | I-NUT, HEXAGON FLANGE |
| 3900956F | I-PLUG, UKWENZIWA |
| 3902663F | SCREW, HEXFLANGEHEADCAP |
| 3917995F | CLAMP, SPRING HOSE |
| 3922794F | vala, O INDANDATHO |
| 3928624F | vala, O INDANDATHO |
| 3932475F | I-GASKET, TURBOCHARGER |
| 3932484F | IWASHA, UKUVALWA |
| 3932520F | INDANDATHO, OILPISTONRING |
| 3940123F | I-COLLET, VALVE |
| 3943447F | INDANDATHO, COMPRESSIONPISTONRING |
| 3954829F | SEAL, THERMOSTAT |
| 3955393F | SEAL, VALVE STEM |
| 3957290F | VALVE, HLOLA |
| 3959079F | INDANDATHO, COMPRESSIONPISTONRING |
| 3963983F | IWASHA, UKUVALWA |
| 3963988F | IWASHA, UKUVALWA |
| 3964817F | ISIKRHULU, ISIXHUMANISI SE-BANJO |
| 3968563F | SEAL, AMAFUTHA |
| 3972375F | IBHANDE, V RIBBED |
| 4062328F | vala, O INDANDATHO |
| 4890832F | SEAL, AMAFUTHA |
| 4891179F | ISIKHILU, IYAQHUMA ICAPS YEZINDUKU |
| 4903110F | SCREW, HEXFLANGEHEADCAP |
| 4934749F | vala, O INDANDATHO |
| 4937308F | I-NOZZLE, PISTONCOOLING |
| 4938765F | SEAL, AMAFUTHA |
| 4940194F | SCREW, HEXFLANGEHEAD |
| 4940584F | SEAL, GROMMET |
| 4943051F | I-GASKET, CYLINDER HEAD |
| 4944374F | vala, O INDANDATHO |
| 4946239F | IGASKET, VALVE COVER |
| 4948504F | UKUTHWALA, OKUMKHULU |
| 4948505F | UKUTHWALA, OKUMKHULU |
| 4948506F | UKUTHWALA, CRANKSHAFTTHRUUST |
| 4948508F | UKUTHWALA, INDUKU YOKUXHUMANA |
| 4948509F | UKUTHWALA, INDUKU YOKUXHUMANA |
| 4980605F | I-GASKET, LUBOILPUMP |
| 4983020F | I-GASKET, INTAKE MANIFOLD |
| 4990276F | I-GASKET, LUBOILCLRHSG. |
| 4990798F | TUBE, FUELSUPPLY |
| 4994574F | vala, O INDANDATHO |
| 4994692F | I-PLUG, LINETHREDE |
| 4995185F | SEAL, D INDANDATHO |
| 4995750F | I-SEAL, I-OIL PAN |
| 5253501F | USINQO, INDANDATHO KAKANDENGE |
| 5255186F | TUBE, CPR WATER INLET |
| 5255187F | TUBE, CPRWATERINLET |
| 5257072F | vala, O INDANDATHO |
| 5259563F | vala, O INDANDATHO |
| 5259924F | vala, O INDANDATHO |
| 5261587F | vala, O INDANDATHO |
| Idatha ye-FF05706VEMF | ISIHLUNGI SAMAFUTHA |
| Idatha ye-LF16352VEMF | ISIHLUNGI SELUBE |
| 5284841F | TUBE, INJECTOR FUEL SUPPL |
| 5284843F | TUBE, INJECTOR FUEL SUPPL |
| 5288373F | vala, O INDANDATHO |
| 5288374F | SEAL, INJECTOR |
| 5293769F | I-TUBE, I-FUEL DRAIN |
| 5316116F | I-TUBE, UKUNIKEZWA KWAMAFUTHA |
| 5317266F | I-HOSE, BUMBILE |
| 5337966F | I-THERMOSTAT |
| 70506 | ENG.OIL (PREMIUM BLUE) 18LS.S |
| 5261376F | I-CRANKSHAFT, INJINI |
| 5302892F | I-PUMP, Amafutha Okugcoba |
| 5272007F | ROD, PHUSHA |
| 5257364F | INDODA, UKUXHUMANA KWEZINJINI |
| 2881748F | IKIT, I-PISTON YENJINI |
| 4990291F | CORE, COOLER |
| 3940734F | I-VALVE, KHIPHA |
| 3940735F | I-VALVE, INTAKE |
| 5306414F | VIMBELA, CYLINDER |
Izingxenye ezijwayelekile zenjini ye-BFCEC ISG
| 3696801F | vala, O INDANDATHO |
| 3697683F | vala, O INDANDATHO |
| 4994574F | vala, O INDANDATHO |
| 5253501F | USINQO, INDANDATHO KAKANDENGE |
| 3678912F | vala, O INDANDATHO |
| 3928624F | vala, O INDANDATHO |
| 5265267F | SEAL, AMAFUTHA |
| 3910248F | PLUKI, O INDANDATHO |
| 3697435F | vala, O INDANDATHO |
| 3963988F | IWASHA, UKUVALWA |
| 3695722F | I-CRANKSHAFT OIL SEAL |
| 3035027F | vala, O INDANDATHO |
| 3695663F | AMAFUTHA PAN GASTET |
| 3698018F | I-GASKET, CYLINDER HEAD |
| 4989613F | vala, O INDANDATHO |
| 3697433F | vala, O INDANDATHO |
| 5255313F | I-GASKET, INJECTOR |
| 3697681F | I-GASKET, TURBOCHARGER |
| 3697434F | vala, O INDANDATHO |
| 3697611F | I-HOSE, I-ELBOW |
| 3696537F | IBHANDLA |
| 3696745F | UKUTHWALA OKUMKHULU |
| 3696746F | UKUTHWALA OKUMKHULU |
| 3697685F | UKUTHWALA, CRANKSHAFT TRUST |
| 3695505F | UKUXHUMANA UKUTHWALA KWEZINDUKU |
| 3695506F | UKUXHUMANA UKUTHWALA KWEZINDUKU |
| 3698001F | INDANDATHO, COMPRESSION PISTON |
| 3695511F | INDANDATHO YE-COMPRESSOR PITON |
| 3698002F | INDANDATHO, COMPRESSION PISTON |
| 5302887F | IKIT, I-OIL COOLER |
| 5262686F | IGASKET, I-COVER PLATE |
| 3695606F | I-AIR COMPRESSOR INLET YAMANZI |
| Idatha ye-LF17356VEMF | ISIHLUNGI SELUBE |
| 3696820F | ISIHLUNGI SAmafutha |
| 5337704F | I-GASKET, I-OIL DRAIN |
| 70506 | ENG.OIL (PREMIUM BLUE) 18LS.S |
| 3696971F | I-PISTON COOLING NOZZLE |
| 3696214F | I-THERMOSTAT |
| 3696215F | I-THERMOSTAT |
| 3697413F | I-VALVE, INTAKE |
| 3696843F | I-VALVE, I-OUTTAKE |
| 3697698F | I-PISTON, INJINI |
| 3697697F | I-PISTON, INJINI |
| 3695507F | I-PINTON |
| 3696242F | INDUKU YOKUXHUMANA |
| 3696436F | I-LUB PUMP |
| 4307475F | JOVA |
| 3696868F | AMANZI AMANZI |
| 3697684F | I-LINER, CYLINDER |
| 3696749F | INHLOKO, ISIHLUNGI SAMAFUTHA |
| 3697999F | I-FLYWHEEL |
| 3903464F | SCREW, HEXFLANGEHEADCAP |
